Research systems
Driven by curiosity and built on purpose, this is where bold thinking meets thoughtful execution. Let’s create something meaningful together.
Specifications
Discover the technical specifications of our research systems, designed to adapt to local conditions and challenges such as water and power supply. Built for reliable performance and easy operation, our systems can be configured to meet the needs of different facilities and environments.
-

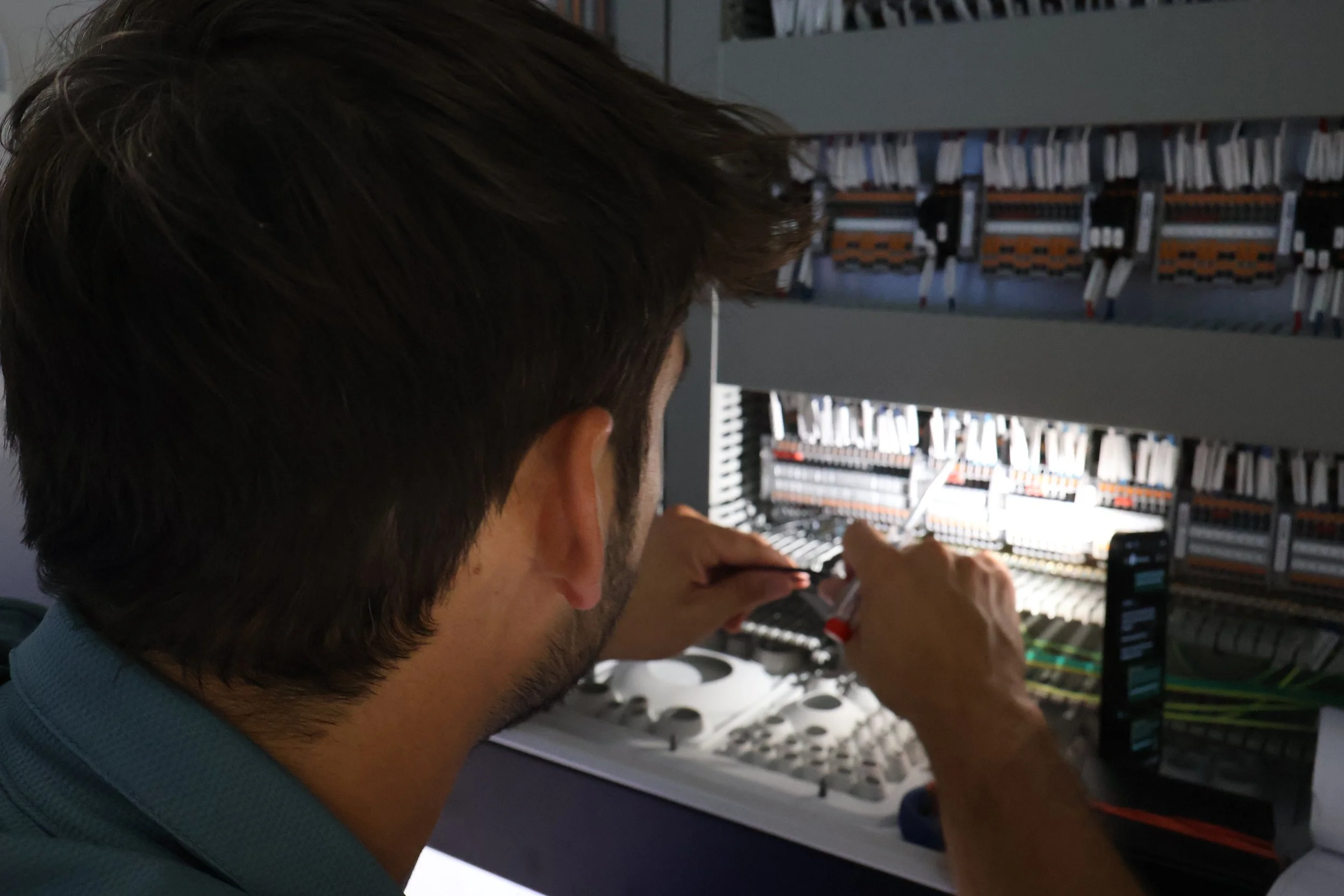

The system is PLC-controlled, automating key components such as valves, lighting, heaters, analyzers, and level switches, while allowing operators to switch to manual control when needed. Software updates are delivered via an internet connection, ensuring the system stays up to date.
-
Each system consists of four sump (preparation tanks) and four main research tanks, each main research tank can hold 14 × 6L subtanks, or any other configuration as requested. Each main research tank individually equipped with a heater, and the subtanks have an individual temperature sensor. The research tanks can be independently switched on or off to suit operational needs. Lighting can be adjusted per research tank individually.
-
Each research tank has a standard capacity of 225 liters, with dimensions of approximately 150 × 80 × 25 cm. Subtanks are standard six liter tanks but can be changed if requested. Tank dimensions and capacity can be customized to meet specific project requirements.
-
All systems are operated through a single touchscreen interface, regardless of the number of systems installed. The interface is internet-connected, allowing operators to securely monitor and manage the facility remotely through a web browser.
-
Maintenance requirements and schedules are clearly displayed within the system interface, supported by step-by-step instruction videos for key maintenance tasks. Systems are supplied with essential spare parts, enabling technicians to quickly replace components when required.
-
The system can operate using a direct seawater supply, with appropriate mechanical and biological filtration, or with prepared artificial seawater. This flexibility allows the system to be adapted to different locations and water sources. Water of the research systems are not being reused as this could impact research results, unless requested.
-
Keep critical systems running, even during a power outage. The system can automatically switch to backup batteries or generators, while intelligent energy management prioritises essential functions such as temperature control and minimum water flow when energy availability is limited.
Our services
Installation
We support the construction, installation, and commissioning of your system to ensure everything is correctly set up and ready for operation. Our team helps verify that the system performs as designed from day one.
Maintenance

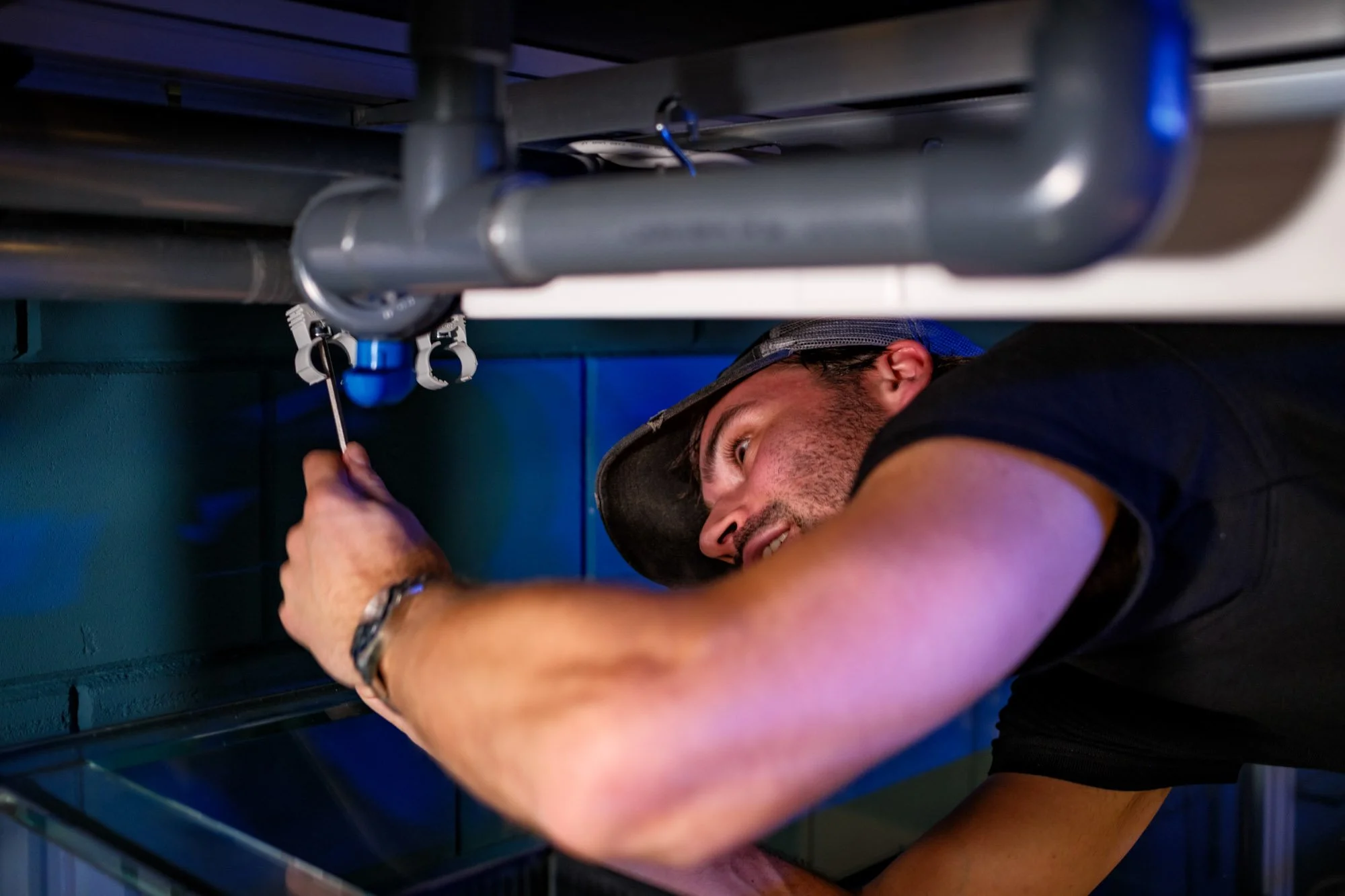

We provide preventive maintenance services to minimize downtime and keep your facility operating at optimal performance. We can also provide a continuous supply of spare parts to ensure essential components are always available when needed
Training & Supervision
We train operators and technicians to confidently operate, monitor, and maintain the systems. When additional support is needed, our team can remotely monitor system data from our headquarters and provide advice and guidance.
Other systems
Our systems are fully modular and can be configured to match the specific needs of each facility. Individual systems can be supplied separately or combined in any configuration, allowing capacity and functionality to grow as your requirements evolve.
Spawning systems
Nursery systems
Research systems
